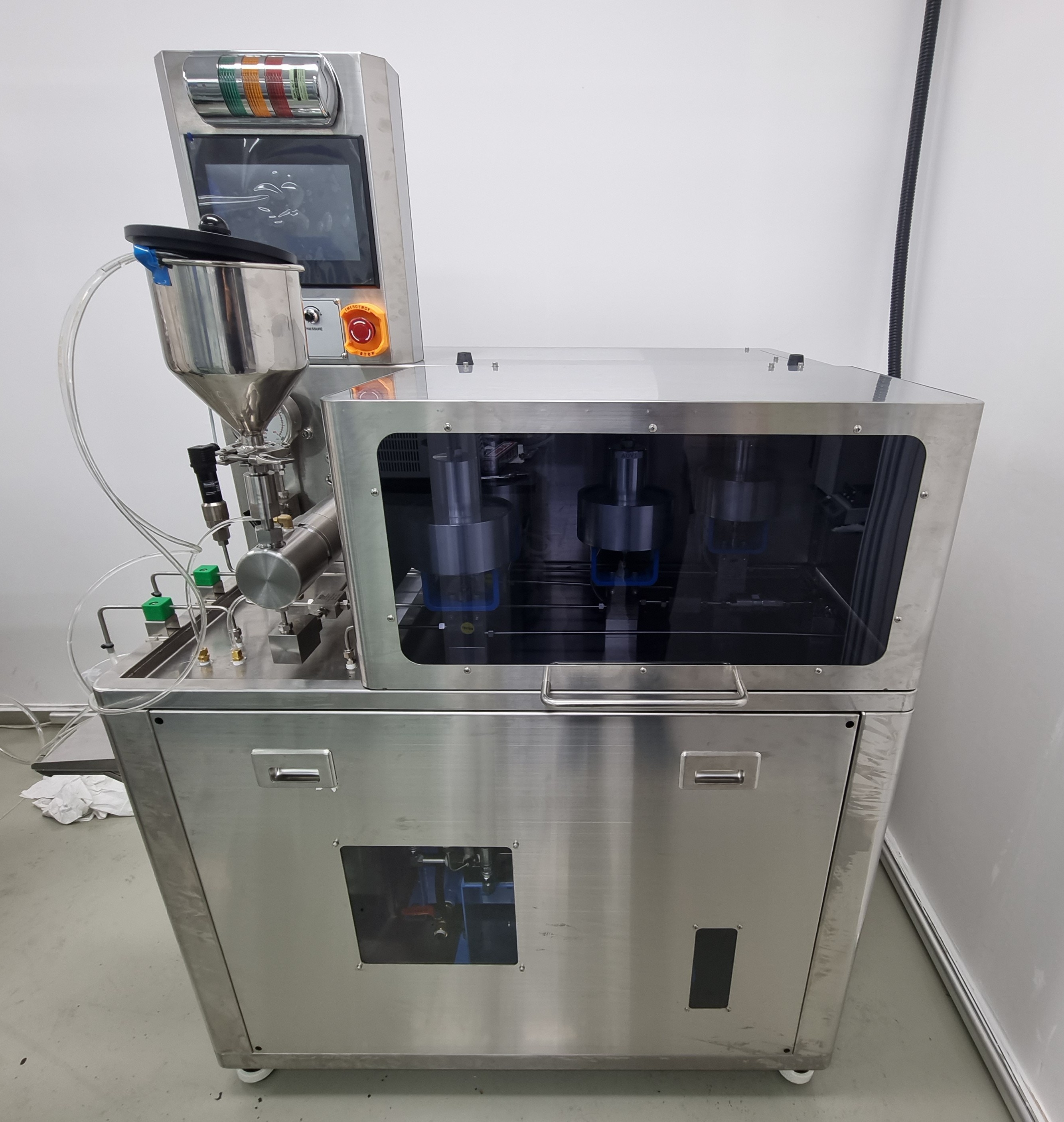

초정밀 고압분산기 – 미세 분산의 새로운 기준
이차전지·식품·화장품·바이오·제약 등 다양한 산업에 적용 가능하며, 생산 효율과 품질을 동시에 극대화합니다.
제품 특징 및 사양
* Max. flowrate : 300 cc/min
* Intensifier : single acting single stage
* Intensifer drive source : electro-hydraulic power
* Plunger of intensifier : Polished ceramic rod
* Intensifer head material : SUS304
* Intensifier check valves
- 220/380VAC 3phase, 5hp
- Type : ball check
- Material : Ceramic + SUS
* Flow control of intensifier
- by flow control of hydraulic oil
* Structure
- SUS case
* Max. discharge pressure : 1300bar
* Max. flowrate : 510 L/hr (8.5 liter/min) ±10% at 1300 bar
* Intensifier : Double acting single stage, dual
* Intensifer drive source : electro-hydraulic power
- 570 L/hr (9.5 liter/min) ±10% at 1100 bar
- 380VAC 3phase, 50hp
* Plunger of intensifier : Polished ceramic rod
* Intensifer head material : SUS304
* Intensifier check valves
- Type : ball check
- Material : Ceramic + SUS, EPDM O-Ring
- SUS case
- 케이스 내부 공기 순환을 위한 fan 설치 및 도어 디자인
